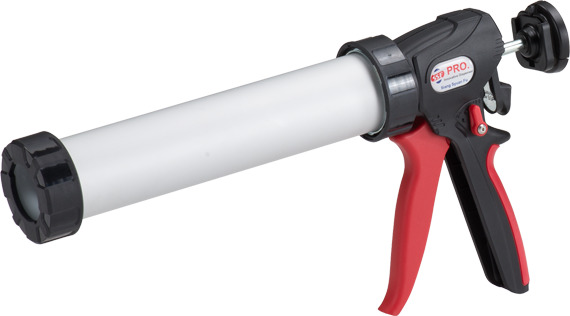

SSF-SR-AMZ
2-in-1/ for sausage pack/ cartridge/ 10.1-13.5oz/ switchable thrust ratio (12:1 to 24:1)/ rotary barrel
SPECIFICATIONS
- 01Mechanical thrust ratio: 12:1&24:1 / Stroke: 7mm&3.5mm
- 02Maximum force: 200kgf (2.0kN)
- 03Cartridge capacity: 310-400ml (10.5-13.5oz)
- 04Sachet capacity: 300-400ml (10.1-13.5oz)
- 05Impact-resistant Nylon+Glass fiber handle and trigger
- 06TPE rubber soft grip design
- 07Twin heat treatment steel push plates
- 08Steel zinc plated push rod
- 09Patented 360° rotary type of Anodized Aluminum barrel
- 10Lightweight design impact-resistant nylon caps
- 11Impact-resistant nylon rod puller
- 12Patented Quick fit & toolless plunger system
- 13Patented no trigger gaps design
- 14Include standard nozzle and large flow nozzle
- 15Patented quick switch 12:1 to 24:1 thrust ratio system
- 16Suitable for Low to High viscosity materials
OPTIONAL
- Patented 2-in-1 convertible rod puller or ladder hook puller
- LOGO print screen or label

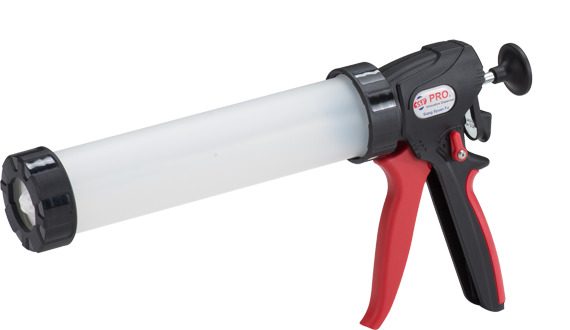

- PP translucent barrel or PC transparent barrel
- If you need customize design, please make an enquiry
PACKING DETAIL
CARTRIDGE SIZE
- Weight : 0.00kgs (0.0 lbs) / 1 pce
- Carriage Length: 270mm (10.64in)
- Packing: 1pce/ PE bag, 10pcs/ carton
- Standard Color: Black or Matte silver, for other colors, MOQ 1,000pcs is required
- For other packing: display box, blister card packing, print screen, sticker and customize design and so on, MOQ is required
